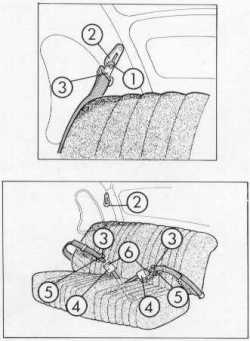

Fig. 13 - Lap strap
belts
1 - Locking catch
2 - Holder
3 - Catch tounge
4 - Buckle
5 - Adjustment buckle
6 - Release button |
- 3. Static seat belt, lap-strap
type (Fig. 13)
| Fastening: |
- Disconnect the catch tounge (3)
from its holder (2).
Bring the two parts of the belt across the lap, insert the
catch (1) into the buckle (4) until it clicks home.
|
| Adjustment: |
- The belt should be close to the
body, without being too tight.
Ist length can be adjusted by sliding the strap, using the
adjustment buckle(5).
|
| Unfastening: |
- Press the red release button (6)
to undo the belt.
After using the belt, insert the catch tounge into its
holder (2) in the stowed position.
|
|
Checking inertia reel seat belts:
Take hold of the strap by the catch tounge, as for putting the
belt on; pull the belt sharply, the reel must lock.
Cleaning the belts: See under Maintenance, page 28.
Replacement: It is necessary to replace the belt when it has
been in use in a serious accident, or if it shows signs of severe
fraying or of having been cut.
| N.B.: |
Do not modify the belts or their
fixings in any way, since such changes may render the belts
ineffective.
For markets outside France, consult your Dealer who will advise
you on any additional legal requirements and fittings. |
|
|
