L.H.D. DRIVING POSITION (ACCORDING TO MODEL)

Page Page
1 Fresh air vent, L.H. side 16   10 Headlamp adjustment knob 31
2 Windscreen washer pump switch 14   11 Direction indicators 14
3 Hazard warning control 14   12 Combined "Anti-theft/Ignition/Starter" switch 10a
4 Check button for brake fluid level warning lamp 14   13 Handbrake 13
5 Windscreen demisting/defrosting nozzle 16   14 Choke control with warning lamp 10b
6 Windscreen wiper control 14   15 Lighting and horn control 15
7 Control knob for ventilation shutter 16   16 Windscreen/floor air distribution control 17
8 Oddments tray     17 Gear change lever 12
9 Fresh air vent, R.H. side 16   18 Heating control 16

CONTROLS AND ACCESSORIES - DASHBOARD INSTRUMENTS

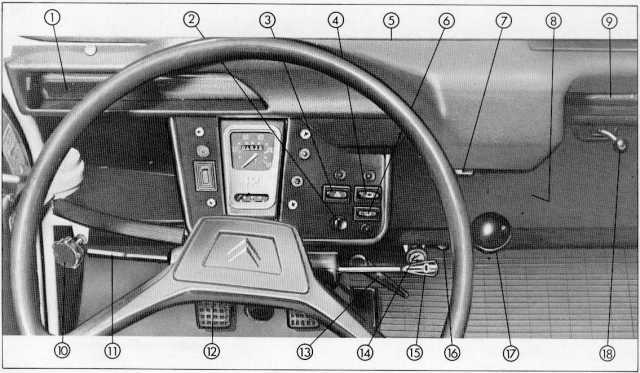

Page 05 Fig. 07
Fig. 7 - Driving position (L.H.D)
Controls and accesories
Dashboard and instruments
