R.H.D. DRIVING POSITION (ACCORDING TO MODEL)

Page Page
1 Fresh air vent, L.H. side 16   14 Hazard warning switch 14
2 Heating control 16   15 Warning lamp for brake fluid level
  • It lights up when the level is too low in the reservoir.
  • If it lights up, stop the car immediately and consult a Citroen Dealer.
  • Before starting, ensure that the warning lamp operates correctly by pressing check button (14) (with ignition on).
31
3 Gear change lever 12   16 Check button for brake fluid level warning lamp 14
4 Control knob for ventilation shutter 16   17 Windscreen wiper switch 14
5 Direction indicators 14   18 Engine oil pressure warning lamp
  • It lights up when the ignition is switched on and goes out as soon as the engine is running .
  • If it remains on with the engine running or lights up during a journey, stop the engine to check the oil level and top up if necessary (see page 22).
  • Should it remain on despite a correct oil level, stop again and contact a Citroen Dealer.
13
6 Switch for rear fog lamp     19 Lighting and horn control 14
7 Fresh air vent, R.H. side 16   20 Headlamp adjustment control knob 31
8 Warning lamp for rear fog lamp
It stays on as long as the rear fog lamp is in operation
    21 Windscreen washer pump switch 14
9 Speedometer
The orange marks indicate the speed limit for each gear
    22 Choke control with warning lamp
Stays on as long as the button has not been fully pushed in.
10b
10 Total milage recorder     23 Combined "Anti-theft/Ignition/Starter" switch 10a
11 Fuel gauge
Tank capacity: 25 litres (5.4 Imp. Gallons)
    24 Windscreen/floor air distribution control 17
12 Windscreen demisting/defrosting nozzle 17   25 Handbrake 13
13 Hazard warning indicator lamp
Flashes throughout the operation.
    26 Oddments tray

CONTROLS AND ACCESSORIES - DASHBOARD INSTRUMENTS
Page 05a Fig. 07a

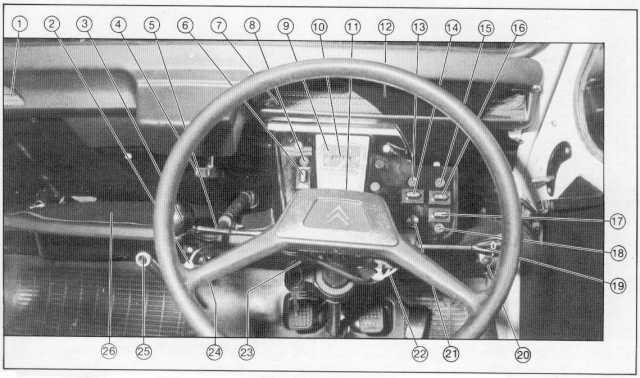

Fig. 7a - Driving position (R.H.D)
Controls and accesories
Dashboard instruments
