| Gear |
Gearbox ratios |
Overall ratios |
| 1 st |
0.1922 (5.20 : 1) |
0.0465 (21.5 : 1) |
| 2 nd |
0.3764 (2.65 : 1) |
0.0912 (10.9 : 1) |
| 3 rd |
0.560 (1.78 : 1) |
0.1357 (7.3 : 1) |
| 4 th |
0.760 (1.31 : 1) |
0.1842 (5.4 : 1) |
| Reverse |
0.1922 (5.20 : 1) |
0.0465 (21.5 : 1) |
| Crownwheel and pinion |
8/33 (4.125 :
1) |
| Voltage |
|
12 V |
Alternator
|
|
|
| Maximum power |
|
390 W |
| Starts charging at |
|
780 rpm |
Battery
|
|
|
| Capacity |
|
125/25 Ah |
| Bulb 12 V - 45/40 W -
type "European Dip" |
Dipped and main beam |
| Bulb 12 V - 4 W - BA 9 S
- type T 8/4 |
Front sidelamps |
| Bulb 12 V - 5 W - type T
19/5 - BA 15 S |
Tail lamps - Number plate
lighting |
| Bulb 12 V - 21 W - type P
25/1 |
Front and rear indicators
- Stoplamps |
| Bulb 12 V - 7 W - BA 15 S
base |
Interior lamp |
| Bulb 12 V - 2 W - BA 9 S
- type T 8/2 |
Speedometer lighting |
|

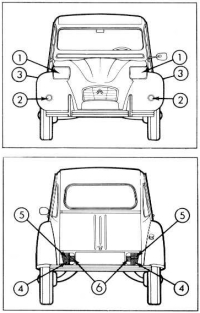

Fig. 59 - Exterior
lighting and signals
1 - Dipped-main beam and front sidelamps
2 - Front direction indicators
3 - Direction indicator side repeaters
4 - Rear direction indicators
5 - Stoplamps
6 - Rear number plate lighting and tail lamps
|
